Name: Yamaha MG12X 12 Channel Mixer with Effects
SKU: MG12X
Availability: InStock

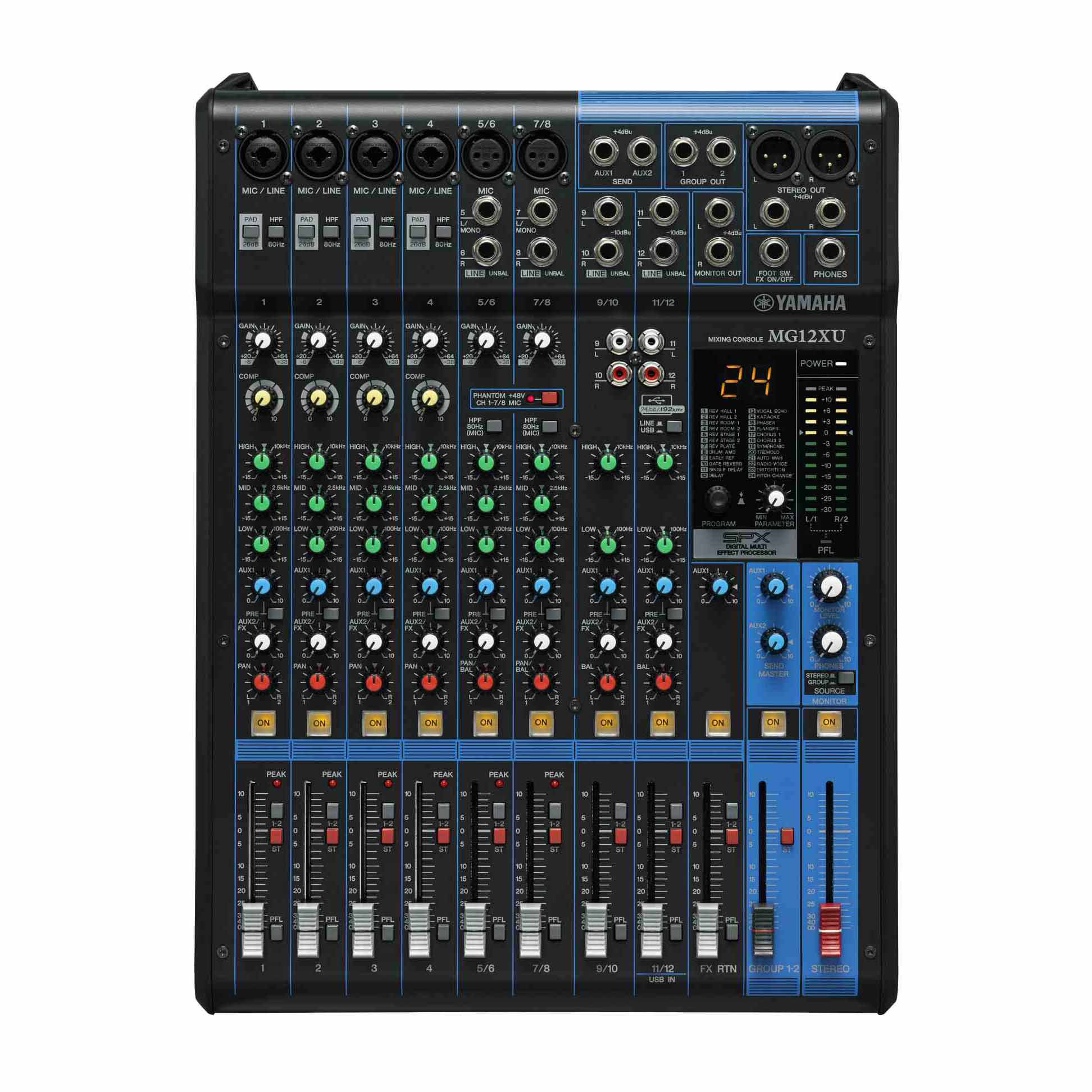

Yamaha MG12X 12 Channel Mixer with Effects

$599.00 – $649.99 inc GST

Brand: Yamaha

The MG12X mixer features six D-PRE microphone preamps, 3-band EQ, one-knob compressors, XLR balanced outputs, SPX digital effects, +48V phantom power, a metal chassis and USB*.

*MG12XU Only

PAY IN FULL or PIPERS PAY-AFTER

4 Interest Free Payments of $149.75

Description

Yamaha MG12X Compact Mixer

12-Channel Mixing Console
Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
2 GROUP Buses + 1 Stereo Bus
2 AUX (incl. FX)
“D-PRE” mic preamps with an inverted Darlington circuit
1-Knob compressors
High-grade effects: SPX with 24 programs
24-bit / 192kHz 2in / 2out USB Audio functions (MG12XU Only)
Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter (MG12XU Only)
Includes Cubase AI DAW software download version
PAD switch on mono inputs
+48V phantom power
XLR balanced outputs
Metal chassis

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalogue of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

Shipping Dimensions

Weight	6 kg
Dimensions	200 × 480 × 390 mm

Mixing capability	On-board processors	SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
I/O	Phantom power	+48 V
I/O	Digital I/O	USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Input Channels	Mono[MIC/LINE]	4
	Mono/Stereo[MIC/LINE]	2
	Stereo[LINE]	2
Output Channels	STEREO OUT	2
	MONITOR OUT	1
	PHONES	1
	AUX SEND	2
	GROUP OUT	2
Bus		Stereo: 1, GROUP: 2, AUX: 2 (incl. FX)
Input Channel Function	PAD	26 dB (Mono)
	HPF	80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
	COMP	1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
	EQ HIGH	Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
	EQ MID	Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
	EQ LOW	Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
	PEAK LED	LED turns on when post EQ signal reaches 3 dB below clipping
	Level Meter	2×12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
Total harmonic distortion		0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response		+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level	Equivalent input noise	-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Hum & noise level	Residual output noise	-102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk		-78 dB
Power requirements		AC 100 – 240 V, 50 / 60 Hz
Power consumption		22 W
Dimensions	W	308 mm (12.1″)
	H	118 mm (4.6″)
	D	422 mm (16.6″)
Net weight		4.2 kg (9.3 lbs.)
Accessories		Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Optional Accessory: Rack-mount kit RK-MG12, Foot Switch FC5
Others		Operating Temperature: 0 to +40˚C

Shipping Dimensions

Weight	6 kg
Dimensions	200 × 480 × 390 mm
