Description

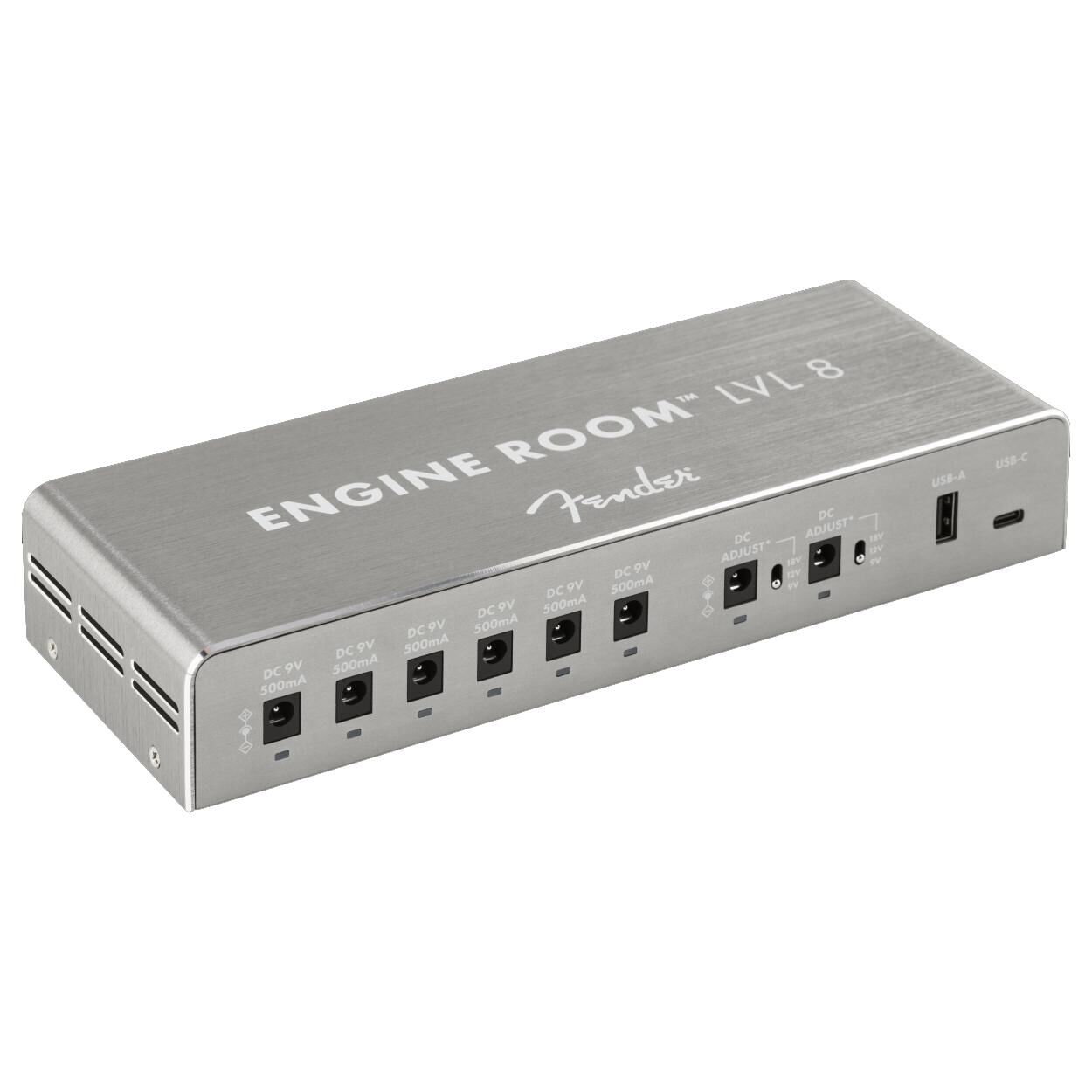

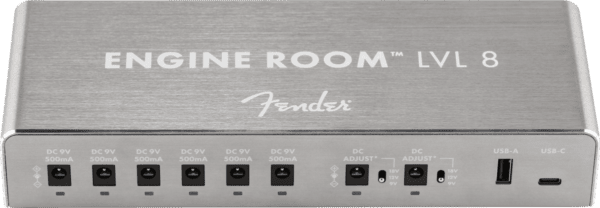

Fender Engine Room LVL8 Pedalboard Power Supply
Pedals need clean isolated power to perform their best. Fender’s Engine Room LVL8 Pedalboard Power Supply is more than capable of that task.
Featuring eight ground isolated power outlets, you have plenty of power at your disposal. Six of these can deliver 9Vdc at 500mA, while 2 additional outlets provide switchable voltage (9v/12v/18v) via a 3-way toggle or slide switch. The LVL8 is perfect for performing & is also ideal for studio players. You can even daisy-chain it with the LVL12 if you want even more power outputs!
Fender’s expert team have designed these exceptional Engine Room Power Supplies to last. The chassis is crafted from lightweight, anodized aluminum, which makes it rugged & roadworthy. The Engine Room has a sleek, low-profile design & is engineered to accommodate most pedalboards. Topping it all off is a 2-colour LED indicator for each output, with green indicating current consumption.
Power your performance with Fender’s Engine Room® Power Supply. It is road-tested and ready for live or studio use, so it’ll be your trusty pedalboard companion for a very long time! You’ll love it!
FEATURES

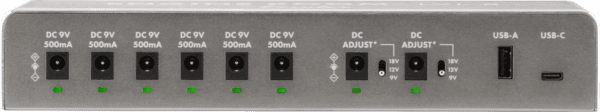

- 8 ground isolated outputs – 6 outlets fixed 9Vdc at 500mA and 2 outlets with switchable voltage (9v/12v/18v)
- Global mains input voltage (100-240Vac) 50/60Hz for use anywhere in the world

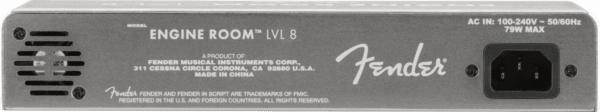

- Standard IEC mains voltage connector
- Dimensions: Length 214 mm (8.425 in); Width 90 mm (3.543 in); Height 42 mm (1.654 in)
- 5V USB-A and USBC output for charging smart devices

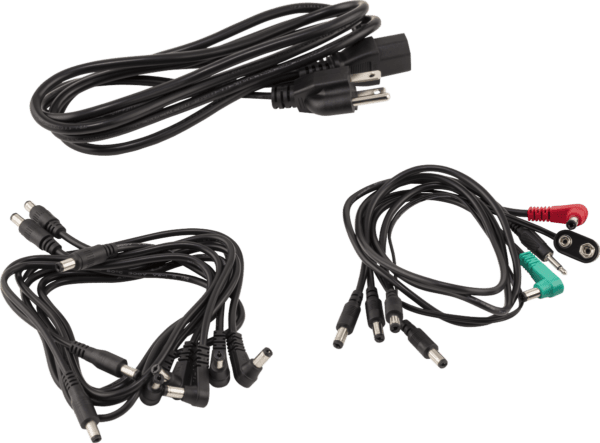

- Cable kit included:
- 4 x 2.1mm barrel connector 24” (60cm) length
- 2 x 2.1mm barrel connector 18” (45cm) length
- 2 x 2.1mm barrel connector 12” (30cm) length
- 1 x 2.5mm to 2.1mm barrel
- A 2.5mm to 2.1mm barrel reverse polarity connector
- 1 x 3.5mm TS to 2.1mm barrel
- 1 x 9V Battery clip to 2.1mm barrel
