Boss PH-3 Phase Shifter Pedal

$249.00 inc GST

Brand: Boss

SKU: PH-3
UPC: 761294053034

The BOSS PH-3 Phase Shifter pedal provides a wealth of vintage and modern phasing effects, including new “Rise” and “Fall” modes for unique, unidirectional phasing.

1 AVAILABLE IN STORE

PAY IN FULL  or  PIPERS PAY-AFTER
4 Interest Free Payments of $62.25

Description

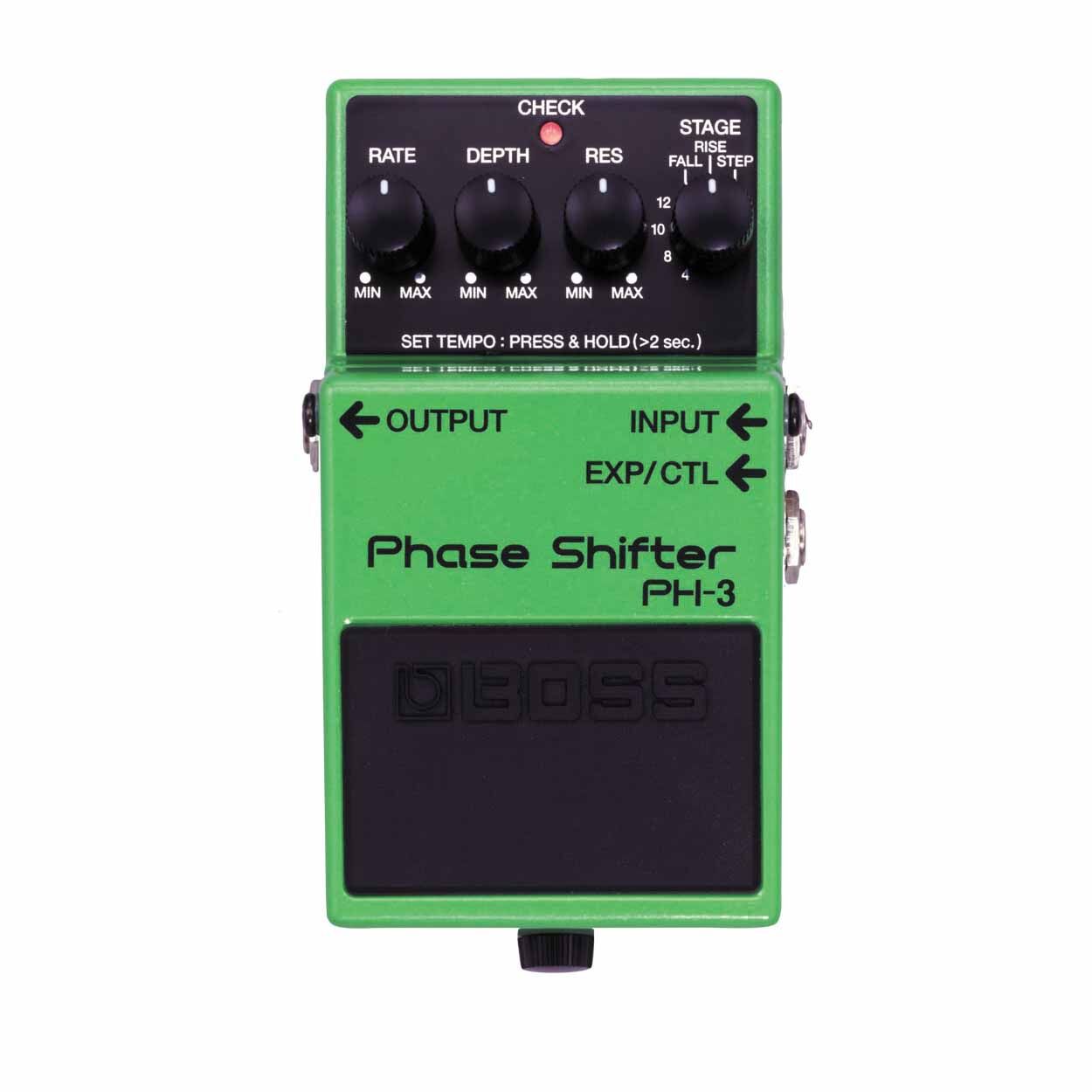

Boss PH-3 Phase Shifter Pedal

The BOSS PH-3 Phase Shifter pedal provides a wealth of vintage and modern phasing effects, including new “Rise” and “Fall” modes for unique, unidirectional phasing. Syncing these phasing effects is as simple as tapping the pedal to the desired tempo, while an optional expression pedal provides real-time control of the PH-3’s Rate, Filter and Tempo.

  • Compact pedal with versatile vintage and modern BOSS phasing
  • New “Rise” and “Fall” modes create unidirectional phasing
  • Includes classic multi-stage phasers with selectable stages
  • Realtime control of Rate via optional expression pedal
  • Tap tempo sync of phasing effects
  • BOSS five-year warranty

“Rise” and “Fall” Effects

In addition to standard up and down cycles, the new PH-3 Infinite Phaser can produce entirely upward or downward moving sounds through its new Rise and Fall effects. There’s also 4-, 8-, 10-, and 12-stage phasers, plus a Step effect.

Total Control

Syncing the PH-3’s phasing effects can be achieved by simply tapping the pedal to the tempo desired. Or, for maximum control, connect an optional expression pedal to control both rate and filter in real time as you play.





Shipping Dimensions

Weight 0.45 kg
Dimensions 150 × 100 × 75 mm

Nominal Input Level
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohms or greater
Bypass
Buffered bypass
Controls
STAGE switch
RES(Resonance) knob
DEPTH knob
RATE knob
Pedal switch
Indicator
CHECK indicator (Used for indication of check battery)
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
EXP/CTL jack: 1/4-inch stereo phone type
DC IN jack
Power Supply
Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately)
Current Draw
40 mA
Expected battery life under continuous use
Alkaline: Approx. 9.5 hours
Carbon: Approx. 3.5 hours
*These figures will vary depending on the actual conditions of use.
Accessories
Owner’s manual
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Alkaline battery (9 V, 6LR61)
Options (sold separately)
AC adaptor: PSA series
Expression pedal: EV-30/FV-500L/FV-500H, Roland EV-5
Footswitch(momentary-type): FS-5U/FS-6/FS-7
Size and Weight
Width
73 mm
2-7/8 inches
Depth
129 mm
5-1/8 inches
Height
59 mm
2-3/8 inches
Weight (including battery)
415 g
15 oz
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.




Shipping Dimensions

Weight 0.45 kg
Dimensions 150 × 100 × 75 mm

Payment Methods

PIPERS Wollongong Music Centre offer customers a range of secure and convenient payment methods. Shop with us online with confidence and convenience!

CARD  or  PIPERS PAY-AFTER  Payment Methods: VISA | Mastercard | AMEX | PIPERS PAY-AFTER

Pay for your purchase in full via your preferred credit card, debit card or digital wallet  - OR - enjoy the convenience of split payments & choose to pay by 4 x Fortnightly INTEREST-FREE INSTALMENTS on purchases up to $5,000!

NO ACCOUNT SIGN-UPS, NO CREDIT CHECKS, EASY!

Simply select your preferred option by using the toggle switch on the product page, shopping cart or at the checkout.

afterPay   afterpay

If you're a fan of Afterpay, then we have you covered here too. Simply select the Afterpay payment option at the checkout.

PayPal   PayPal

Simply select the PayPal option at the checkout to pay using PayPal, including their "Pay in 4" option.

Latitude Interest Free Latitude Interest Free

Select the Latitude Interest Free option at the checkout to pay off your purchase on Interest Free terms*. LEARN MORE

*Approved customers only. Minimum spends, conditions, fees and charges apply.

Freight Details

Here at Piper's Wollongong Music Centre, we stock some of the best musical equipment in the world. That’s why we want to make it as quick and easy as possible for you to get your order, safe and sound! We have partnered with some of Australia's leading couriers to deliver your equipment quickly, affordably and safely.

RECENTLY VIEWED

Gretsch G9240 Alligator Round-Neck Resonator Guitar
On Sale
Sale!
%
Off
9
Save $100
100$
9%
100
$
Out Of Stock

Gretsch G9240 Alligator Round-Neck Resonator Guitar

Original price was: $1,099.00.Current price is: $999.00. inc GST

Whether you play chunk rhythm, fingerstyle, bottleneck or anything else, the all-mahogany Gretsch G9240 Alligator Biscuit Roundneck resonator guitar projects its distinctively swampy tone all the way to the back door of any room. Like all fine Gretsch resonator guitars, the vital feature of the G9240 is the Gretsch “Ampli-Sonic™” diaphragm (resonator cone). Hand-spun in Eastern Europe from nearly 99-percent pure aluminum, the Ampli-Sonic diaphragm yields an impressive quality and volume of tone.

Jackson X Series Spectra Bass SBXQ IV
On Sale
Sale!
%
Off
26
Save $400
400$
26%
400
$
Jackson X Series Spectra Bass SBXQ IV
Out Of Stock

Jackson Spectra SBXQ IV X-Series Bass

Original price was: $1,549.00.Current price is: $1,149.00. inc GST

Jackson X Series Spectra Bass SBXQ IV Amber Blue Burst bass boasts a through-body maple neck. This graphite-reinforced  with scarf joint creates formidable sustain, with a speed neck contour, 12″-16″ compound radius bound laurel fingerboard and 24 frets for superior playability.

Epiphone SG Standard G-400 Electric Guitar
On Sale
Sale!
%
Off
19
Save $250
250$
19%
250
$
On Sale
Sale!
%
Off
19
Save $250
250$
19%
250
$
On Sale
Sale!
%
Off
23
Save $300
300$
23%
300
$
On Sale
Sale!
%
Off
23
Save $300
300$
23%
300
$
Select options This product has multiple variants. The options may be chosen on the product page

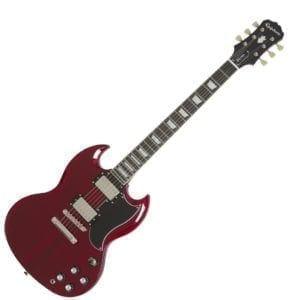

Epiphone SG Standard Electric Guitar
